7 Essential Steps To Animate A Perfect Wave In A Plane Using Blender Geometry Nodes (Updated 2025)

Creating a dynamic, procedural wave animation on a flat plane is one of the most fundamental and satisfying tasks in Blender's Geometry Nodes. As of the current date in late 2025, the node-based workflow offers unparalleled control and flexibility compared to older methods like the Displace Modifier, allowing artists to build complex motion graphics and realistic water surfaces. This deep-dive guide will walk you through the two most powerful and current methods—the classic Sine Wave approach and the versatile Texture-based setup—ensuring your animation is both seamless and fully customizable. The power of Geometry Nodes lies in its "Field" context, where you manipulate the attributes of a mesh, such as its position, based on a calculated value. To animate a wave, you are essentially offsetting the Z-position of every point (vertex) on your plane using a time-dependent mathematical function, creating a mesmerizing, flowing effect perfect for abstract art, sci-fi terrain, or realistic water simulations.

The Core Geometry Nodes Wave Setup: Two Powerful Methods

To begin any wave animation, you must first establish a suitable mesh. A simple Grid Mesh is the ideal starting point because it is a plane with a uniform distribution of vertices. The quality and smoothness of your final wave are directly dependent on the Subdivision (or the number of vertices) of this initial grid. The more vertices, the smoother the wave displacement will be.

Method 1: The Classic Sine Wave Displacement

The Sine Wave method is the most mathematically precise way to create a clean, uniform, and infinitely looping wave. It is the go-to technique for abstract motion graphics and visualizations.

Step-by-Step Sine Wave Node Setup

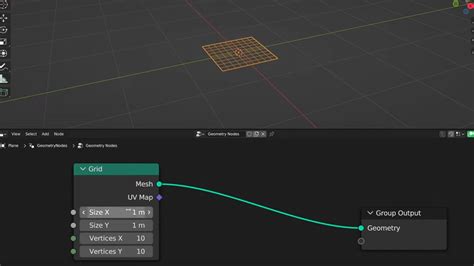

1. Start with the Grid: Add a Mesh Primitive: Grid node. Increase the Vertices X and Vertices Y values significantly (e.g., 100x100) to ensure a high-resolution mesh topology. 2. Set the Position: Connect the Grid output to a Set Position Node. This is the key node that allows you to modify the position attribute of the geometry. 3. Get the Coordinates: Add a Position Node. This gives you the X, Y, and Z coordinates of every vertex on the grid. 4. Isolate the Axis: Add a Vector Math Node set to Separate XYZ. We need the X-coordinate to define the direction of the wave. 5. Calculate the Wave: Connect the X output into a Math Node set to Sine. The Sine function is what generates the smooth, repetitive up-and-down curve of the wave. 6. Animate the Phase: To make the wave move, we need to continuously shift the input of the Sine function. Add another Math Node set to Add before the Sine node. Connect a Scene Time Node (specifically the Seconds output) to this Add node. This creates a Phase Offset that changes over time, driving the animation forward. 7. Control the Look: * Frequency/Wavelength: Use a Math Node set to Multiply *before* the Add node to control how compressed or stretched the wave is. This is your Wavelength control. * Amplitude/Height: Use a Math Node set to Multiply *after* the Sine node to control the maximum height of the wave. This is your Amplitude control. 8. Apply Displacement: Connect the final Amplitude Multiply node into the Z-input of a Combine XYZ Node. Then, connect the output of the Combine XYZ node to the Offset socket of the Set Position Node. The wave will now animate along the Z-axis.

Method 2: The Versatile Wave Texture / Noise Texture Approach

While the Sine Wave is perfect for clean motion, the Wave Texture or 4D Noise Texture provides a more organic, randomized, and realistic look, often used for water or sci-fi terrain. This approach leverages the texture's built-in complexity.

Using the Wave Texture Node

The Wave Texture Node is a powerful procedural tool that simplifies the sine wave setup. 1. Set Position Base: Start with the Grid and Set Position Node as in Method 1. 2. Texture Input: Add a Wave Texture Node. Set the type to Rings or Bands depending on the desired effect. 3. Animation via W-Parameter: The Wave Texture, like the Noise Texture, has a 4th dimension—the W-Parameter. This value is not spatial but acts as a seed or offset, which is perfect for animation. 4. Drive the W: Connect the Seconds output from the Scene Time Node directly to the W input socket of the Wave Texture. 5. Apply Displacement: Connect the Color or Factor output of the Wave Texture into a Combine XYZ Node (into the Z-input). 6. Final Offset: Connect the Combine XYZ output to the Offset socket of the Set Position Node. This setup creates a complex, flowing wave pattern that is less mathematically rigid than the pure Sine function, making it excellent for dynamic procedural animation.

Advanced Techniques for Realistic and Looping Waves

A truly expert Geometry Nodes setup goes beyond basic displacement. It incorporates controls for realism, falloff, and seamless looping.

Creating a Directional Wave and Falloff

A real-world wave often starts from a single point or travels across a surface with diminishing intensity. You can replicate this using a Gradient Texture node. 1. Introduce a Gradient: Before applying the displacement (the Sine or Texture output), multiply its value by a Gradient Texture node (set to Linear or Spherical). 2. Control the Origin: The Gradient Texture's output is a value between 0 and 1. By multiplying the wave height by this gradient, the wave will only appear where the gradient is brightest (closer to 1), creating a natural Falloff effect. 3. Map the Gradient: Use a Vector Math Node to manipulate the coordinates of the Gradient Texture, allowing you to control the exact starting point and direction of the wave's influence across the X and Y axes. This is crucial for controlling the wave's interaction with other objects in the scene.

Ensuring a Perfectly Looping Animation

For professional motion graphics and seamless video exports, your wave animation must loop perfectly. The Scene Time Node is great, but it needs a little help to guarantee a loop. 1. Loop Duration: Decide on your loop duration (e.g., 150 frames or 5 seconds). 2. The Modulo Trick: Use a Math Node set to Modulo (after the Scene Time or Frame node). Set the second value of the Modulo to your desired loop duration (e.g., 5 for 5 seconds). The Modulo operation ensures the time value always wraps back to zero after reaching the specified duration, creating a perfect, non-stop loop. 3. Sine/Cosine for Seamlessness: For the Sine Wave method, you can also use a combination of Sine and Cosine functions to create a seamless 360-degree rotation in your animation's control vector, though the Modulo trick on the time input is often simpler and more versatile for the displacement value itself.

Customizing the Final Wave Look and Feel

The final step in mastering this technique is to expose the critical parameters to the Group Input Node. This allows you to control the wave's properties—Amplitude, Frequency, and Speed—directly from the Blender Modifier Properties panel, turning your complex node setup into a simple, reusable asset.

Key Entities for Customization:

* Amplitude: The Multiply value controlling the height of the Z-Offset. * Wavelength/Frequency: The Multiply value controlling the input to the Sine function. * Speed: The Multiply value controlling the Scene Time input before it hits the Add/Modulo node. * Direction: The Vector input that is added to the Position attribute before it is separated (used to tilt the wave's travel path). By mastering the combination of the Set Position Node, the Position Attribute, and a time-driven function like the Sine Math Node or the Wave Texture's W-Parameter, you gain full procedural control over your geometry. This method is incredibly efficient and is the modern standard for creating dynamic, animated surfaces in Blender 4.0 and beyond, making it an indispensable skill for any motion graphics artist.
