The way you interact with data in Microsoft Excel has fundamentally changed, thanks to a major update that introduced a native, cell-based Checkbox feature. As of December 11, 2025, this new functionality is a game-changer, moving beyond the clunky, floating control objects of the past to create truly dynamic and interactive spreadsheets with unprecedented ease. Forget the old methods requiring the Developer Tab for basic tasks; the modern Excel Checkbox is integrated directly into the 'Insert' menu, making it accessible for everyone from beginners to expert data analysts.

This deep dive will not only show you the lightning-fast way to insert the new Checkbox but will also unveil seven powerful, advanced techniques—complete with the formulas you need—to automate your task tracking, filter large datasets, and perform complex conditional calculations. We will explore the critical difference between the modern cell Checkbox and the older Form Controls, ensuring your data management is efficient and future-proof. Prepare to transform your static lists into powerful, interactive applications.

The New Excel Checkbox: A Modern Game-Changer

For years, adding a checkbox to Excel meant enabling the obscure Developer Tab and wrestling with Form Controls or ActiveX Controls—objects that floated awkwardly above the cells. The latest update, primarily for Microsoft 365 subscribers, has introduced a native, cell-level Checkbox that behaves like any other data type, simplifying automation and formula integration dramatically.

• The Unseen Story Jessica Simpsons Battle For Privacy And Body Image In A Digital Age Mlvqa

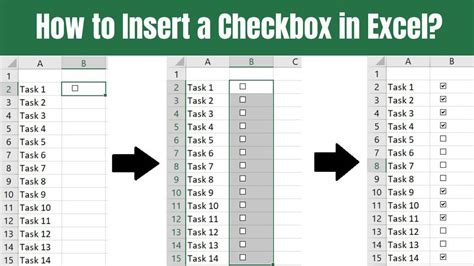

Step-by-Step: Inserting the New Cell Checkbox

The process is now incredibly streamlined and does not require the Developer Tab, making it accessible for all users.

• Select the Range: Highlight the cell or range of cells where you want the checkboxes to appear.
• Insert Tab: Navigate to the Insert tab on the Excel Ribbon.
• Click Checkbox: Look for the Checkbox option within the 'Controls' or 'Insert' group and click it.

A checkbox will instantly appear in the selected cells. Unlike the old controls, this new checkbox is a native cell value. When checked, the cell value is TRUE; when unchecked, the value is FALSE. This simple Boolean logic is the key to unlocking its power in formulas.

7 Advanced Checkbox Techniques to Automate Your Work

Leveraging the TRUE/FALSE value is what makes the new Checkbox so powerful. Here are the most impactful ways to use it for data automation and analysis:

• The Untouchable Privacy 7 Secrets Of Rachel Mcadams And Jamie Lindens Life Beyond The Red Carpet E820e

1. Dynamic To-Do List with Strikethrough (Conditional Formatting)

This is the most common and satisfying use case. You can automatically apply a strikethrough format to a task when its corresponding checkbox is checked.

• Select the Data: Highlight the entire task list (e.g., cells A2:A10).
• Conditional Formatting: Go to Home > Conditional Formatting > New Rule.
• Use a Formula: Select "Use a formula to determine which cells to format."
• The Formula: Enter the formula =$B2=TRUE (assuming your first checkbox is in cell B2).
• Format: Click the "Format" button, go to the "Font" tab, and select the Strikethrough option.

Now, checking the box in column B automatically strikes through the text in column A.

2. Counting Completed Tasks (COUNTIF)

Track your progress by counting how many tasks are complete versus incomplete. The formula is simple because TRUE is treated as 1 and FALSE as 0 in mathematical operations.

• The Surprise Vegas Wedding And Shared Grief 5 Shocking Details Of John Schneider And Dee Dee Sorvinos Whirlwind Romance Ohirf

• Count Completed: =COUNTIF(B2:B10, TRUE)
• Count Remaining: =COUNTIF(B2:B10, FALSE)

This provides instant progress metrics, which can be linked to a progress bar.

3. Calculating Total Cost of Selected Items (SUMIF)

Use checkboxes as dynamic selectors to calculate the total cost of only the items you've checked.

• Setup: Assume Column A has the Item, Column B has the Checkbox, and Column C has the Cost.
• The Formula: =SUMIF(B2:B10, TRUE, C2:C10)

The SUMIF function only sums the values in the Cost column (C2:C10) where the corresponding cell in the Checkbox column (B2:B10) is TRUE (checked).

4. Dynamic Filtering with the FILTER Function (Dynamic Array)

This is one of the most powerful modern uses. Use the checkbox as a switch to dynamically display only the checked items in a separate list. This requires Dynamic Array Formulas available in Microsoft 365.

• Setup: Assume your full data range is A2:C10, and the Checkbox column is B2:B10.
• The Formula: =FILTER(A2:C10, B2:B10=TRUE)

This formula spills the data for only the rows where the checkbox is checked, creating a dynamic, filtered view without needing the traditional Filter button.

5. Hiding Details with a Master Checkbox

Create a master checkbox that controls the visibility of a section of your spreadsheet using a combination of cell linking and the INDEX and XMATCH functions, or simply by linking the checkbox to a cell and using conditional formatting to hide text.

6. Combining Multiple Conditions (AND/OR)

Checkboxes can be combined to manage project gates or multi-step processes. For example, a task is only "Ready for Review" if both "Draft Complete" (Checkbox A) AND "Data Verified" (Checkbox B) are checked.

• The Formula: =IF(AND(A2=TRUE, B2=TRUE), "Ready for Review", "Pending")

7. Conditional Data Entry

Use a checkbox to enable or disable data entry in another cell using Data Validation. For instance, a cell for "Reason for Delay" is only active if the "Delayed" checkbox is checked.

• Select Target Cell: Highlight the cell to be conditionally entered (e.g., C2).
• Data Validation: Go to Data > Data Validation.
• Custom Formula: Set "Allow" to "Custom" and use the formula =$B2=TRUE (where B2 is the checkbox).

Form Control vs. ActiveX vs. New Cell Checkbox

While the new cell-based Checkbox is the preferred modern method, understanding the older controls is still important for legacy files or advanced VBA projects.

Form Control Checkbox

The oldest and simplest of the floating controls. It is easy to use and primarily linked to a single cell to return TRUE or FALSE. It's ideal for simple, non-VBA interactions but is cumbersome to copy and paste across many cells compared to the new native control.

ActiveX Control Checkbox

These controls are designed for complex interactions and require knowledge of VBA (Visual Basic for Applications). They offer more formatting and event-driven control (e.g., running a macro when clicked). ActiveX is generally reserved for building custom user forms and complex application interfaces within Excel.

Modern Cell Checkbox Summary

The modern checkbox is superior for almost all common spreadsheet tasks: to-do lists, dynamic filtering, conditional formatting, and simple calculations. It is a cell value, not a floating object, making it easy to manage, copy, and integrate with all standard Excel formulas, including Dynamic Array Formulas.

Best Practices for Checkbox Implementation

To ensure your interactive spreadsheets are robust and easy to maintain, follow these expert tips:

• Isolate Checkboxes: Always place your checkboxes in their own dedicated column. Do not mix them with other data.
• Use Absolute References: When applying conditional formatting or formulas that reference the checkbox column, use absolute column references (e.g., $B2) to ensure the formula correctly adjusts when copied down.
• Label Clearly: Use the column header to clearly label the purpose of the checkbox (e.g., "Complete?", "Include?", "Selected").
• Protect Your Sheet: Once your checkboxes and formulas are set up, consider protecting the worksheet to prevent users from accidentally deleting the formulas or moving the controls, only allowing them to interact with the checkboxes themselves.
• VBA for Bulk Operations: For massive lists (thousands of rows) where you need a "Select All" or "Clear All" button, the older Form Control combined with a simple VBA macro is still the most efficient way to toggle all checkboxes simultaneously.

By embracing the new cell-based Checkbox and these advanced formula techniques, you can transform static data into interactive, powerful, and automated dashboards, making your Excel files far more engaging and functional than ever before.
